LINEARIZER VSC-2L

Feature

A set up of the equal percent characteristic to change to linear , is easy
The part type and mixed control by two sets of control valves
Revision of the difference in the operating time of two sets of valves control is
possible.
VSC-2L PHOTO

Specification

Specification 4 to 20mA signal Linearizer
Classification VSC-2L
Voltage DC24V ±10%
Power required 2W MAX.
Input signal 4 to 20mA ( Input resistance 250ohm.)
Output signal 4 to 20mA 2 (Proportional control side: input resistance less than 600ohm.)
16 kinds of characteristics can be set up at SW.
Resolution Less than 0.2%
Correction speed (sec) 1 to 90sec. (Input signal 0 to 100%)
It sets up by the compensation time setup SW.
Temperature feature Less than 5μA/°C
Ambient temperature range -10 to 50°C
Ambient humidity range 30 to 85% Non-condensation
Terminal board For naked wires Conformity wire
0.2 to 2.5mm² (AWG24 to 12)
Attachment method DIN rail attachment (35mm)
Outside dimension W 23 , D 115 , H 99 (mm) (DIN rail from an attachment side)
Special AC power supply unit is prepared. Please consult us.

The example of use

The equal percent characteristic is rectified and it is made the linear characteristic.
Compensation and mixture of the flux characteristic
FIG1 FIG2
Compensation of the flux characteristic
FIG3 FIG4

Notes

1.Environment
Be careful not to close the slit for thermal radiation.
Avoid areas that are direct sunlight, dust, or receives radiation of heat from other.
Avoid areas that are corrosivity gas, flammable gas, libration and force.

Avoid areas that are large noise serge.
2.Precautions
However [power supply-input signal-OUT A OUT B] of main product is not insulated, mature consideration at the time of the design of a control device.
In case of an actuator power supply is DC24V, please design a control device according to the following clause.
Make sure separate the power supply of an actuator, and the power supply of main machine and a regulation meter, or carry out isolation of the incoming signal.
[OUT A ][OUT B ]make each actuator power supply separate, or carry out isolation of the signal l
The output which is not used should short circuit + and -.
Technical Data

Output selection table
FIG5


Inherent flow characteristic
FIG6

Regulation

Output setpoint
Please set input-and-output characteristic graph as reference out of 16 patterns (0 to F) by the output characteristic setup SW in consideration of the characteristic change by the peculiar flux characteristic or actual pressure loss, the purpose, etc.

Correction speed (sec)
RES-TM Correction speed
0 1 sec.
1 5 sec.
2 10 sec.
3 15 sec.
4 20 sec.
5 25 sec.
6 30 sec.
7 35 sec.
8 40 sec.
9 45 sec.
A 50 sec.
B 60 sec.
C 70 sec.
D 80 sec.
E 90 sec.
F -

*When if use for dividing or mixing, please be adjust with the long service actuator of time of operation.
Front panel configuration

FIG7

Wiring, Block diagram

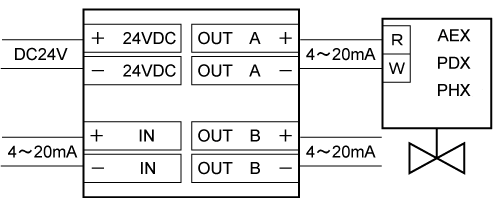

WIRING
