Emergency Shut Off Actuator
ABR/HBR , ABE/HBE series
ABR PHOTO
 Highly reliable mechanism with built-in high performance compact shielded battery.

Long service life - over 8 years.

Emergency open-close operation is possible by external signal during power failure (Max. one week) - ABE/HBE series.

When motor is not in motion, consumed electric power is less than 3W. Energy-saving design.
Actuator type
ABR-300
ABR-700

HBR-300
HBR-700
HBR-02K
HBR-06K
ABE-300
ABE-700

HBE-300
HBE-700
HBE-02K
HBE-06K
Rated torque Nm
30
70

30
70
200
600
Speed   s
3 to 4
6 to 10

1 to 2
3 to 5
8 to 15
24 to 45
Voltage
100/110, 200/220V AC (50/60Hz), 24V DC
Power required
AC power supply:100VA MAX.
DC power supply: 80VA MAX.

AC power supply:150VA MAX.
DC power supply: 120VA MAX.
Motor
DC motor
Overload protection
Current limiter
Duty cycle
20%/15 min. at ambient temperature 50°C
(ambient temperature range: -20 to 50°C)
Other

Enclosure: JIS C0920 IP65 aluminum alloy diecast
(acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug

Manual over-ride: standard (with clutch)

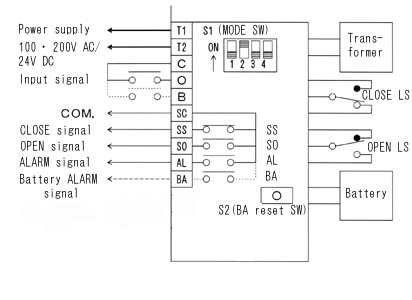

WIRING
WIRING
Amp. required for control SW: 2.5mA
Output relay rating: 0.5A 120V AC MAX./ 600mA to 1mA 24V DC
* Battery check (option)
When B is ON, check-circuit starts up.
If battery has run out, battery alarm signal is output.
It takes about 2 hours and you can still operate the actuator
during this process.
To reset BA output, press S2 (BA reset SW).

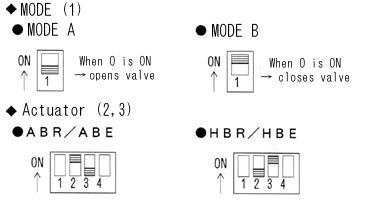

S1 (Mode setup DIP SW) setup
FIG1
When power is shut off
* ABR/HBR
MODE A: shuts valve
MODE B: opens valve

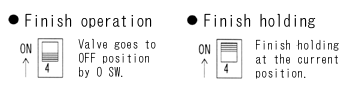

*ABE/HBE (4)
When power is shut off, O SW allows valve operation.
When valve voltage goes down, it operates as it's set with
MODE SW then finishes battery operation.
FIG2
