High-Power Electric Actuator
AD series
AD PHOTO Economic actuator allowing you to choose from various control selections. AD2 type comes with built-in relay.
Actuator type
AD1-300
AD1-700
AD2-300
AD2-700
Rated torque
Nm
30
70
Speed   s
3 to 4
6 to 10
Voltage
100/110, 200/220V AC (50/60Hz),
24V DC*(AD2: Only)
Power required
AC:100VA MAX. DC:80VA MAX.
Motor
DC motor
Overload protection
Current limiter (AD1: Thermistor)
Duty cycle
20%/15 min. at ambient temperature 55°C
(ambient temperature range: -20 to 55°C)
Other

Enclosure: JIS C0920 IP65 aluminum alloy diecast
(acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2-G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug

Manual over-ride: standard (with clutch)

*No DC power supply type for AD1
Optional Parts
WIRING

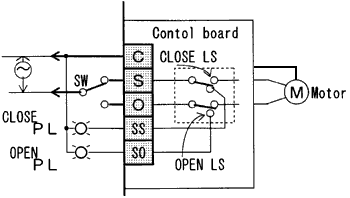

AD1
WIRING
Output signal rating: 0.7A 120V AC/0.5A 250V AC MAX.
Power to S shuts valve (Position 1), SHUT PL is lit.
Power to O opens valve (Position 2), OPEN PL is lit.

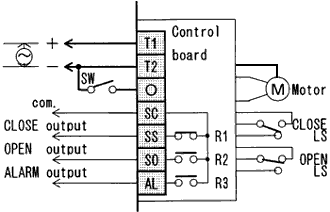

AD2
WIRING
Amp. required for control SW: 10mA/6.5mA 100/200V AC/38mA 24V DC
Output relay rating: 0.5A 120V AC/1A 24V DC MAX.
SW OFF : SHUT (Position 1) R1 SW ON
SW ON : OPEN (Position 2) R2 SW ON
