High-Power Electric Control Actuator
AEX series
AEX PHOTO Actuator for control operation. It's light weight and compact.
Actuator type
AEX-120
AEX-360
AEX-700

AEX-02K

 AEX-06K
Rated torque
Nm
12
36
70

200

 600
Speed   s
30/25 (50/60Hz)
36/30 (50/60Hz)
72/60
(50/60Hz)

77/64
(50/60Hz)

 77/64
(50/60Hz)
Voltage
100/110, 200/220V AC
Power required
9.5VA
13VA

45VA

 220VA
Motor
Synchronous motor
(Triac control)

Reversible motor
(Triac control)
Resolution
Less than 0.2%
Overload protection
Timer
Input signal
 (a) 4 to 20mA / 1 to 5V (input resistance: 250ohm.)
(b) 0 to 5V, 0 to 10V (input resistance: more than 1Mohm.)
(c) 135ohm. to 1Kom. (potentiometer input)

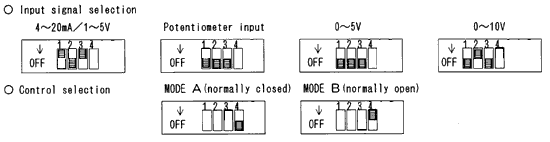

* Selected by digital SW on control board
OPEN/CLOSE input

Input by OPEN/CLOSE control SW
(Amp.required for control SW: 6mA DC 15V)

OPEN/CLOSE input is prior to input signal.
Indication signal
 0 to 1mA (maximum input resistance of customer's indication: 3kohm.)
Duty cycle
100% at ambient temperature 65°C
(ambient temperature range: -20 to 65°C)
Other

Control MODE A: normally closed
Control MODE B: normally open
(selected by DIP SW on control board)

Adjustable rating of operating angle
(CLOSE side: 0 to 40%, OPEN side: 50 to 100%)

Enclosure: JIS C0920 IP65 aluminum alloy diecast (acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug

Optional Parts

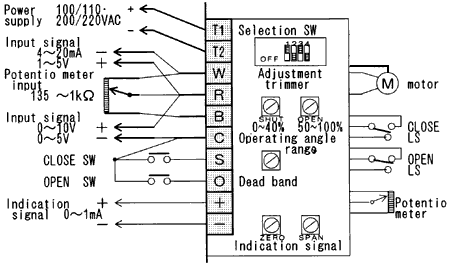

WIRING
WIRING
FIG1
MODE A: 4mA/1V to Shut (Position 1) to 20mA/5V to Open (Position 2)
MODE B: 4mA/1V to Open (Position 2) to 20mA/5V to Shut (Position 1)
