Compact Electric Actuator
AM series
AM PHOTO Light weight and economical actuator for AC power supply. AM2 type comes with built-in relay.
Actuator type
AM1-030
AM1-070
AM1-180
AM2-030
AM2-070
AM2-180
Rated torque
Nm
3
7
18
Speed sec.
*5.4/4.5
*15.5/13
*16/13.5
Voltage
100/110, 200/220V AC
Power required
16VA
19VA
Motor
Synchronous motor
Overload protection
Thermal protector
Duty cycle
20%/15 min. at ambient temperature -20 to 55°C
(Actuator by itself : -20 to 65°C)
Motor cover
Polycarbonate resin
Other

Space heater for anti condensation: standard

Enclosure: JIS C0920 IP65

Wiring conduct: G3/8

Cable gland (for φ 5 to 10.5 cable): standard
(*: Speed : 50/60Hz)

WIRING

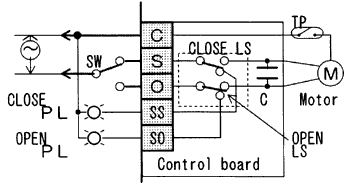

AM1
WIRING
Output relay rating: 0.7A 120V AC, 0.5A 250V AC MAX.
Power to S shuts valve (Position 1), SHUT PL is lit.
Power to O opens valve (Position 2), OPEN PL is lit.

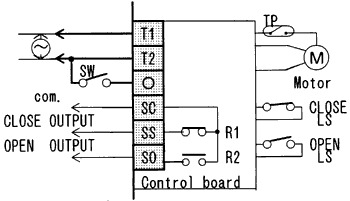

AM2
WIRING
Amp. required for control SW: 9mA 100/200V AC
Output relay rating: 0.5A 120V AC/ 1A 24V DC MAX.
SW OFF : SHUT (Position 1) R1 SW ON
SW ON : OPEN (Position 2) R2 SW ON
