Mini Electric Actuator
CD2 series
CD2 PHOTO Very small and low price actuator. It is designed for DC power supply (24V DC and 12V DC), and suitable to be built in devise.
Actuator type
CD2-030-0
Rated torque
Nm
3
Speed s
1.5 to 3
Voltage
24V DC ±20% *
Power required
When in motion:10VA MAX.
When not in motion:Close position 0.25VA, Open position 0.5VA
Motor
DC motor
Overload protection
Thermistor
Manual operation Direct operation
Ambient temperature range -20 to 50 °C
Duty cycle
20%/15 min.
Prevent condensation Space heater ( 0.5W )
Enclosure JIS C0920 IP65
Motor cover
Polycarbonate resin (black)
Other

Space heater for anti condensation: standard

Flexible cable: 5 leads, 500mm
* DC power supply with full wave rectification or half wave rectification can not to be used.

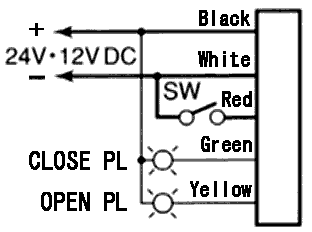

WIRING
WIRING
SW OFF : SHUT (Position 1) SW ON : OPEN (Position 2)
