Very small and low price actuator. It is designed for AC power supply (AC100/110 V 200/220 V), and suitable to be built in devise. |
| Mini Electric Actuator | |
| CM series |
|
Very small and low price actuator. It is designed for AC power supply (AC100/110 V 200/220 V), and suitable to be built in devise. |
|
|
|
CM1-070 | |
| CM2-030 | CM2-070 | ||
|
|
|
7 | |
|
|
|
17/14 s | |
|
|
(50/60Hz) |
||
|
|
|
13VA | |
| CM2-030 : 7VA | |||
|
|
|
||
|
|
|
||
| Manual operation | Direct operation CM*-070 Manual over-ride with clutch |
||
| Ambient temperature range | -20 to 50 °C | ||
|
|
|
||
| Prevent condensation | Space heater ( 0.3W ) | ||
| Enclosure | JIS C0920 IP65 | ||
|
|
|
||
|
|
Space heater for anti condensation: standard Flexible cable: 5 leads, length:500mm |
||

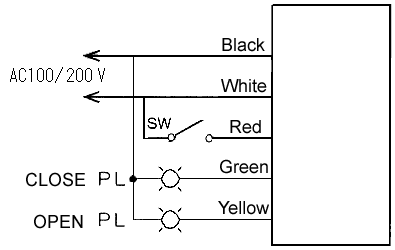

| WIRING |
| CM1: With terminal for light indication. |
| SW to white : SHUT (Position 1) | SW to Red : OPEN (Position 2) |
| CM2: With built in relay for operation and signal | |
 |
|
| SW OFF : SHUT (Position 1) | SW ON : OPEN (Position 2) |
|
|
|
