Emergency Shut Off Actuator

ECR series

ECR PHOTO

Ultra high capacity electric double layer capacitor.

In case of power failure, electric discharge from built-in capacitor lets valve operate.

Capable of high-frequency operation (over 200,000 times), and maintenance-free.

When motor is not in motion, consumed electric power is less than 2W. Energy-saving design.

Actuator type

ECR-120

ECR-360

Rated torque
Nm

12

36

Speed   s

3 to 6

7 to 14
Charging Time * 30 s 90 s

Voltage

100/110, 200/220V AC ±5% (50/60Hz)
(other type by special order)

Power required

when in motion: 30VA MAX.
when in charge: 50VA MAX.
when in not motion: 2.5VA.

Motor

DC motor

Overload protection

Timer

Duty cycle

20%/15 min. at ambient temperature 50°C
(ambient temperature range: -20 to 50°C)

Other

Enclosure: JIS C0920 IP65 aluminum alloy diecast
(acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable)
, plug

Manual over-ride: standard (with clutch)

* When the power is just turned on.

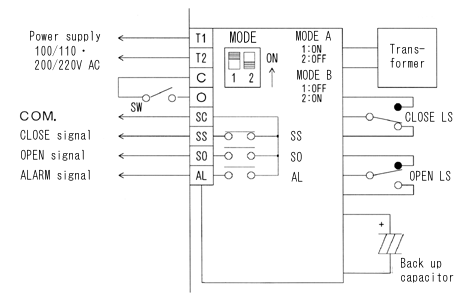

WIRING

WIRING

Output signal rating: 125V AC/0.5A , 24V DC/1A MAX.
Amp. required for control SW: 6mA (leak less than 1mA)

When the power is turned on, operation starts after capacitor

is charged.

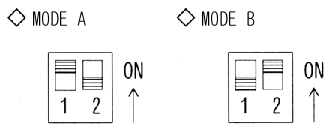

* How to set the DIP SW

Set the MODE (DIP SW) as shown below.

It's in MODE A when shipped.

FIG1

* Operation

MODE A:

SW OFF : turns clockwise SS output.

SW ON : turns counter-clockwise SO output.

MODE B

SW ON : turns clockwise SS output

SW OFF : turns counter-clockwise SO output.

* When power shuts off

MODE A:

turns clockwise SS output.

MODE B:

turns counter-clockwise SO output.
