Compact Electric Actuator
PAX series
PAX PHOTO Actuator for small valve DN. It's light weight and compact.
Actuator type
PAX-050
PAX-120
Rated torque
Nm
5
12
Speed   s
*14/12
*30/25
Voltage
100/110, 200/220V AC (50/60Hz)
Power required
9.5VA
Motor
Synchronous motor
Overload protection
Impedance protect
Duty cycle
100% at ambient temperature -20 to 55°C
(Actuator by itself : -20 to 65°C)
Motor cover
Polycarbonate resin
Input signal
4 to 20mA / 1 to 5V
Resolution
Less than 0.2%
Other

 Space heater for anti condensation: standard

 Enclosure: JIS C0920 IP65

 Wiring conduct: G3/8

 Cable gland (for φ 5 to 10.5 cable): standard
(*: Speed : 50/60Hz)

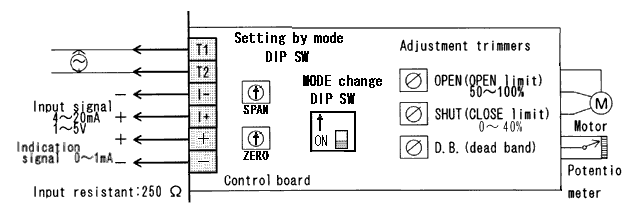

WIRING
WIRING
FIG1

MODE A: 4mA/1V to shut. (Position 1) to 20mA/5V to open. (Position 2)
MODE B: 4mA/1V to open. (Position 2) to 20mA/5V to shut. (Position 1)
MODE A/B is selected simply by setting the socket located on built-in control board.
