High-Power Electric Control Actuator
PDX series
PDX PHOTO Actuator for high power and control operation.
Actuator type
PDX-300
PDX-700
PDX-02K

PDX-06K
Rated torque
Nm
21
50
140

400
Speed   s
6 to 20
15 to 50
30 to 100

90 to 300
Voltage
100/110, 200/220V AC DC/AC 24V
Power required
AC power supply:100VA MAX.
DC power supply: 80 VA MAX.
 AC power supply:150VA MAX.
DC power supply: 120VA MAX.
Motor
 DC motor
( VIC voltage, current control)
Resolution
Less than 0.5%
 Less than 0.2%
Overload protection
Current limiter
Input signal
 (a) 4 to 20mA / 1 to 5V (input resistance: 250ohm.)
(b) 0 to 5V, 0 to 10V (input resistance: more than 1Mohm.)
(c) 135ohm. to 1Kohm. (potentiometer input)
* Selected by digital SW on control board
OPEN/CLOSE input

Input by OPEN/CLOSE control SW
(Amp.required for control SW: 6mA DC 15V)

OPEN/CLOSE input is prior to input signal.
Ambient temperature -20 to 55°C (Actuator by itself: -20 to 65°C)
Indication signal
 0 to 1mA (maximum input resistance of customer's indication: 3kohm.)
Duty cycle
50% 30min.
Other

Control MODE A: normally closed
Control MODE B: normally open
(selected by DIP SW on control board)

Adjustable rating of operating angle
(CLOSE side: 0 to 40%, OPEN side: 50 to 100%)

Enclosure: JIS C0920 IP65 aluminum alloy diecast (acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug
Optional Parts

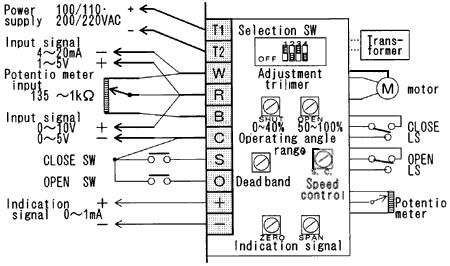

WIRING
WIRING
FIG1
MODE A: 4mA/1V to Shut (Position 1) to 20mA/5V to Open (Position 2)
MODE B: 4mA/1V to Open (Position 2) to 20mA/5V to Shut (Position 1)
