High-Power Electric Control Actuator
PHR series
PHR PHOTO High-frequency ON-OFF operating actuator with high speed brushless DC motor. This series can be substitute for PHX series.
Actuator type
PHR-300
PHR-700
PHR-02K
PHR-06K
Rated torque Nm
21
50
140
400
Speed   s
1.5 to 2.5
4 to 7
10 to 18
28 to 50
Voltage
100/110, 200/220V AC, 24V DC/AC
Power required
120VA MAX.
Motor
Brushless DC motor (PWM)
Overload protection
Current limiter
Input signal
 (a) built-in relay
(b) terminal for light indication
* Selected by digital SW on control board
DC15V 6mA (It's possible to use transistor)
Duty cycle
100% at ambient temperature 55°C
(ambient temperature range: -20 to 55°C)
Other

Enclosure: JIS C0920 IP65 aluminum alloy diecast
(acrylic resinbaking finish).

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug

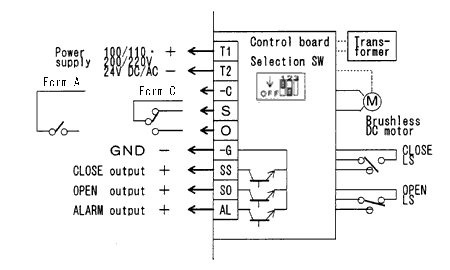

WIRING
WIRING
Open/Shut signal : 50V DC 30mA MAX.
Mode selection
Form A Form C
Reverse Operation Regular Operation
FIG1
SW ON : Open valve SW ON : Shut valve SW S : Shut valve
SW OFF : Shut valve SW OFF : Open valve SW O : Open valve
SW OFF : Keep the opening angle as it is
Input signal selection
FIG2
NOTE: Since SW3 is already set at the time of shipment, please do not change it.
