High-Power Electric Control Actuator
PHX series
PHX PHOTO
High-frequency operating actuator with high speed brushless DC motor. It 's suitable for control operation.
Actuator type
PHX-300
PHX-700
PHX-02K
PHX-06K
Rated torque
Nm
21
50
140
400
Speed s
1.2 to 2.5
(MAX.8)
3.5 to 7
(MAX. 22)
11 to 23
(MAX. 78)
35 to 70
(MAX.230)
Voltage
100/110, 200/220V AC, 24V DC/AC
Power required
120VA MAX.
Motor
Brushless DC motor (PWM)
Resolution
Less than 0.2%
Overload protection
Current limiter
Input signal
4 to 20mA / 1 to 5V (input resistant: 250ohm.)
OPEN/CLOSE input

Input by OPEN/CLOSE control SW
(Amp.required for control SW: 6mA DC 15V)

OPEN/CLOSE input is prior to input signal.
Indication signal
0 to 1mA (maximum input resistance of customer's indication: 3kohm.)
Duty cycle
100% at ambient temperature 65°C
(ambient temperature range: -20 to 65°C)
Other

Control MODE A: normally closed
Control MODE B: normally open
(selected by DIP SW on control board)

Adjustable rating of operating angle
(CLOSE side: 0 to 40%, OPEN side: 50 to 100%

Enclosure: JIS C0920 IP65 aluminum alloy diecast
(acrylic resin baking finish)

Space heater for anti-condensation: standard

Wiring conduct: 2 G1/2

Attachments: cable gland (for φ 6 to 12 cable), plug
Optional Parts

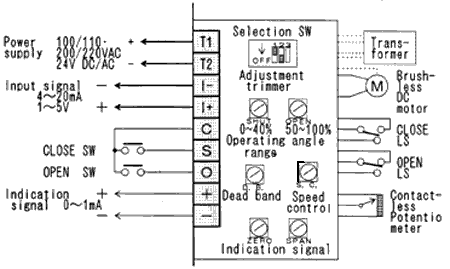

WIRING
WIRING
Control selection
FIG1
MODE A: 4mA/1V to Shut (Position 1) to 20mA/5V to Open (Position 2)
MODE B: 4mA/1V to Open (Position 2) to 20mA/5V to Shut (Position 1)
Input signal selection
FIG2
NOTE: Since SW3 is already set at the time of shipment, please do not change it.
