Mini Electric Actuator
PM series
PM1 PHOTO Mini and low price actuator. It has a contactless electric control system and a simple structure.
Actuator type
PM1-030
Rated torque
Nm
3
Speed s
7.5/6.3
(50/60Hz)
Voltage
100/110, 200/220V AC (50/60Hz)
Power required
8VA
Motor
Synchronous motor
Overload protection
Timer
Manual operation Direct operation
Ambient temperature range -20 to 50 °C
Duty cycle
20%/15 min.
Prevent condensation Space heater ( 0.5W )
Enclosure JIS C0920 IP65
Motor cover
Polycarbonate resin (black)
Other

Space heater for anti condensation:standard

Flexible cable: 500mm

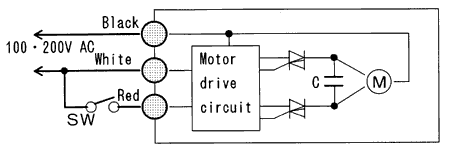

WIRING
WIRING
SW OFF : SHUT (Position 1) SW ON : OPEN (Position 2)
