Electric Actuated Ball Valve
E5/L5 series
L5 PHOTO Stainless body and ball are available to be able to use for poor quality water caused by corrosive environment.
Connection

E5: Threaded End Rc, Standard bore

L5: J5K, J10K flanged, Standard bore
Material Stainless
Valve DN 25 to 125A
Maximum Pressure in MPa 0.5
Fluids Water, Sea water

Production Data  STANDARD DORDER

4Body

 T SCS13A

5Ball

 T SCS13A


6Seat

 T PTFE

 Stem Seal

 EPDM

Valve Type

Actuator

H

Handle
length

L

Cv

Electric type

Electric type

Manual
type

E5/L5

AE3-

AD3-

HD3-

AE3

AD3

HD3

Valve
DN

E5

25A

120

.

.

197

.

.

82

145

132

7.7

L5

32A

360

300

.

229

288

.

112

200

185

15

40A

360

300

.

229

288

.

112

200

185

15

50A

700

700

.

248

291

.

115

350

211

36

65A

700

700

.

258

301

.

125

350

240

58

80A

.
.

02K.

.
.

332

168

600

296

86

100A

.
.

02K.

.
.

337

173

600

360

133

125A

.

.

06K

.

.

395

204

770

430

221

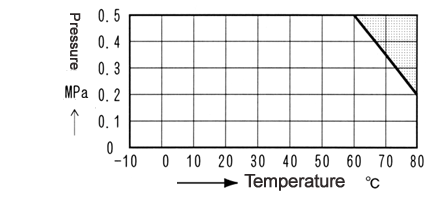

Pressure / Temperature Rating
L5 TEMP

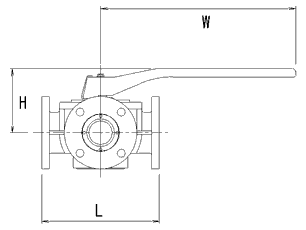

Outside Drawing
 L5 GAIKEI MANUAL
 L5 GAIKEI ELECTRIC

Flow Paths (top views of valve)

Filtration

Reverse flow

Cleaning

FORM L
(Water outlet on the left)

FORM L 1

FORM L 2

FORM L 3

FORM R
(Water outlet on the right)

FORM R 1

FORM R 2

FORM R 3


NOTE:
When using underground water or sea water, non-electrolvtic nickel PLTD (TN, L5 type option) is needed. Please consult us.

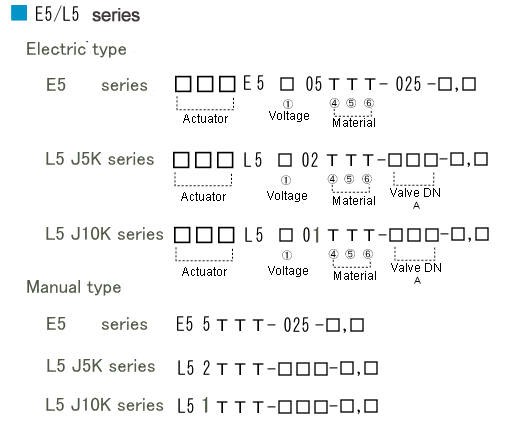

Product Code

L5 CODE


Actuator

Power Supply

High-power

1Voltage

AC

AE3/AD3/HD3

1: AC100/110V

2: 200/220V

Option
TN: Non-electrolvtic nickel PLTD
(For sea water)
