Mac series Ball Valve
TE series


TVEPHOTO

Long-neck structure and 3 way valve, for thermal insulation construction.
It is suitable to be used in air-conditioning piping system.

Connection

Threaded End Rc

Material Stainless

Valve DN

15A to 25A

Maximum Pressure
MPa

1.0

Fluid

Water Oil Gas (Steam)

Production Data

   STANDARD ORDER

Body

 T SCS13A

Ball

 T SUS304

Seat

 P PTFE + FKM O-ring

Stem seal

 FKM
Valve DN

H

 L W

Cv
15A 88 58.2 40 3
20A 90 60 40 6
25A 93 73.5 40 9

Flow paths (front views of valve)

Outside Drawing

FORM

Position 1ALOWPosition 2

 TE GAIKEI

Dividing : Flows from C port to A, B port.

Mixing : Flows from A, B port to C port.


Pressure / Temperature Rating

TE TEMP

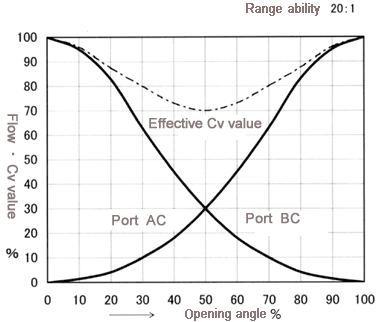

Inherent flow characteristic
TE FLOW
Product Code
M A C T E T - 5 T T P - 1
1Valve DN
ex. 20A -> 020
