Ball valve for flow control. V-ported segment provides maximum versatility in control, and various types of fluid are acceptable. It has an equal percentage inherent flow characteristic. | |||
| Connection | Threaded End Rc, V-ported |
|||
| Material | Stainless | |||
| Valve DN | 10 to 50A | |||
| Maximum Pressure in MPa | 2.0 | |||
| Fluids | Water, Oil, Gas | |||
|
Production Data |
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Stem Seal |
R-PTFE+FKM O-ring |
|||||
Body
SCS14A
Ball
Seat
R-PTFE|
DN (  ) |
H |
W |
L |
Cv |
|
|
R10A |
46 |
115 |
60 |
1.3 |
|
|
R15A |
46 |
115 |
75 |
1.3 |
|
|
15A |
46 |
115 |
75 |
4 |
|
|
20A |
49 |
115 |
80 |
7.5 |
|
|
25A |
59 |
145 |
90 |
12 |
|
|
32A |
64 |
145 |
110 |
20 |
|
|
40A |
76 |
220 |
120 |
31 |
|
|
50A |
85 |
220 |
140 |
48 |
|
|
Inherent flow characteristic |
Outside Drawing |
|
|
|
|

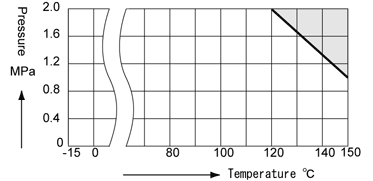

Pressure / Temperature Rating |
|
|
|
|
|
Product Code |
|
|
MAXMVL-5UUP |
With Manual lever |
|
MAXMV0-5UUP |
Valve only |
|
|
|
ex. 20A -> -020 |
|
|
|
LM:Limit switch for open/close signal detection (one-point type) |
