| Max series Ball Valve |
| SH series |
|
|
Designed for steam and high temperature fluid. This type has a long neck and accepts simple-structured actuator. Built to prevent abnormal pressure rise. | |||
| Connection | Threaded End Rc, Full bore |
|||
| Material | Stainless | |||
| Valve DN | 15 to 32A | |||
| Maximum Pressure in MPa | 2.0 | |||
| Fluids | Steam (180 °C ), Oil, Gas | |||
|
Production Data |
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Stem Seal |
R-PTFE+FKM O-ring (for steam) |
|||||
|
Valve |
L |
H |
W |
|
15A |
75 |
48 |
115 |
|
20A |
80 |
51 |
115 |
|
25A |
88 |
59 |
145 |
|
32A |
110 |
65 |
145 |
|

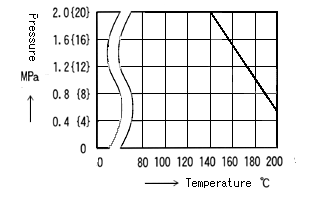

Pressure / Temperature Rating |
Outside Drawing |
|
|
|
|
|
|
Product Code |
|
|
MAXSHL-5UUF- |
With Manual lever |
|
MAXSH0-5UUF- |
Valve only |
|
|
|
ex. 20A -> 020 |
|
|
|
LM:Limit switch for open/close signal detection (one-point type) |
|
|
|
Body
SCS14A
Ball
Seat
F-PTFE
-
