MA series Manual Butterfly Valve   DN  series
MAXDN PHOTO

It is possible to use such as wide range of temperature including steam. Double centering structure and long service life.
Iit is suitable use for control operation. High performance valve with an excellent control ability.

Connection

J5K/ J10K, ANSI 150Lb  flanged, Wafer type

Material

 Stainless

Valve DN

80 to 300A

Maximum Pressure MPa

 1.0
Fluids

Water, Oil, Gas, Steam

Production Data

  STANDARD ORDER
Body
 T SCS13A
Disc
 T SCS13A
Seat
 F F-PTFE

 Stem Seal

  PTFE

Valve
DN
(1)

H

L

 W

Cv

80A (080)

 165

46

 157

220

100A (100)

 195

52

 157

410

125A (125)

 210

56

 157

800

150A (150)

 235

56

 157

1250

200A (200)

 267

60

 240

2450
250A (250) 299 68 226 4250
300A (300) 339 78 226 6750

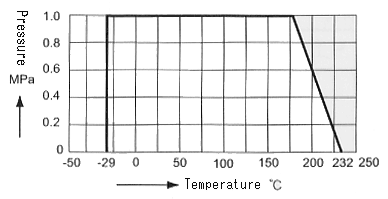

Pressure / Temperature Rating
Outside Drawing
   DN GAIKEI
DN TEMP

Inherent flow characteristic
 DN FLOW


Product Code

MA - DNG - 1TTF1 - 2

Manual lever

1Valve DN

ex. 20A => 020

2Option
LA : Limit switch for OPEN/SHUT signal detection
LK : Limit switch for OPEN detection
LH : Limit switch for SHUT detection
