It's designed for a wide range of temperature. Valve body and disk made by precision processing ensure reduced leakage from valve seat. |
|||
| Connection | J5K flanged, Wafer type | |||
| Material | Stainless | |||
| Valve DN | 40 to 400A | |||
| Maximum Pressure in kPa(mmAq) |
20(2000) | |||
| Fluids | Gas | |||
|
Production Data |
|
||
|
|
|
|||||||||||
|
Disk |
SUS420J2/SUS420J1(Seat:None) |
|||||||||||
|
|
|
|||||||||||
|
|
 Expansion graphite |
|||||||||||
Body
SCS13A
Seat
0:--
S:SUS316+ seal-ring
Stem Seal|
Valve |
H |
W |
L |
Cv |
|
| 40A | 146 | 115 | 40 | 85 | |
| 50A | 151 | 115 | 40 | 145 | |
| 65A | 163 | 115 | 40 | 290 | |
|
80A |
185 |
115 |
50 |
450 |
|
|
100A |
196 |
115 |
50 |
780 |
|
|
125A |
214 |
115 |
50 |
1200 |
|
|
150A |
238 |
145 |
50 |
1800 |
|
|
200A |
261 |
145 |
50 |
3200 |
|
|
250A |
283 |
145 |
50 |
5100 |
|
|
300A |
317 |
220 |
55 |
7200 |
|
| 350A | 374 | 320 | 70 | 8900 | |
| 400A | 397 | 320 | 70 | 11000 | |

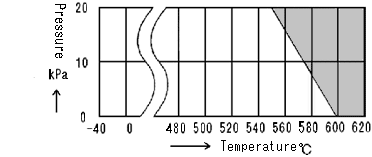

Pressure / Temperature Rating |
Outside Drawing
|
||||||||||||||
| Inherent flow characteristic | |||||||||||||||
 |
|||||||||||||||
|
|||||||||||||||
|
Product Code |
|
|
MA-WTL-2TG |
-
|
|
|
ex. 80A -> 080 |
|
|
| 0:None S:SUS316 with seal ring. |
