For high temperature fluid and steam
SH series Ball Valve

AM1SH PHOTO TADSH PHOTO

AM2 SH type

 TAD SH type

Features

  • Can be used for 1.0MPa saturated steam up to 180°C. Designed to protect against abnormal pressure rise.

  • Precisely casted stainless body is light weight, high quality and low cost to obtain more reliability and economy.

  • Special PTFE with advanced performance against creep enables the use for various fluids and in a wider temperature range.

Valve Specifications
Valve type SH series
Design 2 way ball valve, Full-bore
Connection Threaded End Rc

Valve DN

15A to 32A
Fluids Steam (180°C) , Oil , Gas
Maximum Pressure 2.0 MPa
Materials Body: SCS14A Ball: SCS14A Seat: F-PTFE
Stem seal: R-PTFE+FKM O ring (for steam)

Go to Electric Actuated Ball Valve SH series page for detail

Go to Pneumatic Actuated Valve SH series page for detail

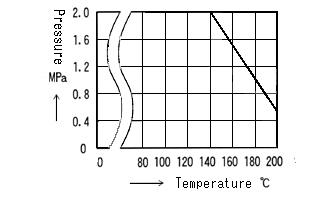

Pressure / temperature Rating
SH TEMP
