Pneumatic Actuated Ball Valve
 T3 series
TADT3 PHOTO Flanged-end 3 way valve for a wide range of pressure and temperature.
Excellent seal nature was realized by trunnion structure and seat spring.
Connection J10K flanged, Full bore
Material Stainless
Valve DN 25 to 100A
Maximum Pressure in MPa 1.0
Fluids Water, Oil, Gas, Steam, Chemicals

Production Data

 STANDARD ORDER

4Body
 T SCS13A

5Ball

 T SCS13A

6Seat
 G R-PTFE

 Stem Seal

 PTFE

Valve Type

Actuator

*H

L

 W

Cv

( ): for straight port

T3

 TAD- TAO-/TAC- TAD
TAO
TAC

Valve
DN

2
Sizing
code

 TAD/
TAO&TAC
25A 0 050 050 224 224 160 170/305 26 (45)
2 063 063 239 239 204/367

40A

0

063

063

230

230

180

 204/367

65 (129)

50A

0

080

080

272

272

200

 240/435

110 (219)

65A

0

080

 080

282

282

 240 240/435

160 (300)

2

100

 100

313

313

 294/530

80A

0

100

 100

331

331

260

 294/530

260 (469)
100A

0

100

 100

344

344

 330 294/530 480(820)

2

125

 125

369

369

 366/688


NOTE:
For solvent or high viscous service, please consult for actuator selection.
*H:When using high temp. fluid (over 170°C) , the option for thermal insulation is needed.


Flow Paths (top views of valve)

Outside Drawing

T3 GAIKEI

form a

FORM a

form b

FORM b

Position1ALOW Position 2

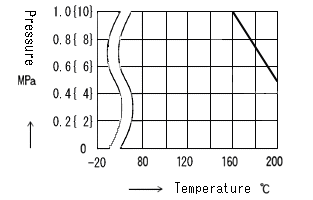

Pressure / Temperature Rating
T3 TEMP

Product Code

T3 CODE

Actuator
Control action
Actuator
Double-acting
type
 TAD
Single-acting
type		 Reverse
operation		 TAO
Regular
operation		 TAC
Option
LB:LS box for open/close signal detection (two-point type)
LC:Electric-pneumatic integrated positioner Limit SW
BS:Speed control with by-pass valve PPS(Double-acting)
EP:Electro-pneumatic positioner
