Compact Pneumatic Actuated Ball Valve TPLP siries
 TP/LP series
TADTP PHOTO 3 way, compact and light weight pneumatic actuated valve. These types accept simple-structured pneumatic actuator, and designed for various types of fluid. Choose either T or L port type with 4 seats assuring tight shut off in each port.
Connection J10K Flanged
Threaded End Rc
Socket
Material PVC
Valve DN 15 to 50A
Maximum Pressure in MPa 1.0
Fluids Water, Sea water, Chemicals

Production Data

 STANDARD ORDER

4Body

 P PVC

5Ball

 P PVC

6Seat

 PTFE

 Stem Seal

  E EPDM  V FKM

Valve Type

Actuator

H

L

 W

Cv

Valve
DN
PND-
 PSO-
PSC-
TAD-
TAO-
TAC-
PND
PSC
PSC
 TAD
TAO
TAC		 *FL *TA *TS PND/
PS*		 TAD/
TAO&TAC

LP type

TP type
( ): for straight port

15A

 03D 04D 040 114 130 150 163 118 129 113/190 110/249 5

4 (7)

20A

 04D 04D 050 134 134 201 200 134 151 132/190 110/249 10

8 (14)

25A

 04D 04W 050 138 138 205 221 156 175 132/279 110/249 16
14 (24)

40A

 . . 063 . . 244 272 203 232   170/305 38
30 (50)
50A . . 063 . . 252 306 225 260   170/305 56 45 (80)

NOTE:
*FL: Flanged *TA: Threaded End Rc *TS: Socket
For solvent or high viscous service, please consult for actuator selection.
Please consult us.
It may leak because of a piping pressure difference.

Flow Paths (top views of valve)

SL type

FORM

STtype

Form a

FORM a

Form b

FORM b

Position1ALOWPosition 2


Pressure / Temperature Rating

Outside Drawing

TP TEMP

TP GAIKEI

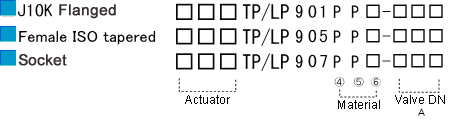

Product Code
TP CODE


Actuator

Control action

Actuator

Option

Double-acting
type
PND
TAD

LB:LS box for open/close signal detection
(two-point type)

Single-acting
type

Reverse
operation
PSO-
TAO

LC: Electro-pneumatic positioner limit SW

Regular
operation
PSC
TAC
 BS: By-pass valve with speed controller made in PPS (Double-acting)
EP: Electro-pneumatic positioner
