Mini Motorized Ball Valve (Threaded) home     back
control: Proportional control is available NEW: New product ( ): Use by conditions is available
a photo A/T series

Feature: Mini, Low price, 2 way/3 way
Material: Brass (Cr PLTD)
Maximum Pressure: 1 MPa
Temperature Rating: -15 to 80 (100)°C
Valve DN: 15 to 25A
ae photo AE/TE series control

Feature: Mini, Low price, 2 way/3 way
Material: Stainless
Maximum Pressure: 1 MPa
Temperature Rating: -15 to 110 (140)°C
Valve DN: 15 to 25A
e photo E series control

Feature: Compact, Low price, for general use
Material: Brass / Stainless
Maximum Pressure: 1 (2) MPa
Temperature Rating: -15 to 80 (120)°C
Valve DN: 8 to 40A
el photo EL series

Feature: Compact, Low price, 3 way
Material: Stainless
Maximum Pressure: 1 MPa
Temperature Rating: -15 to 80 (120)°C
Valve DN: 8 to 40A

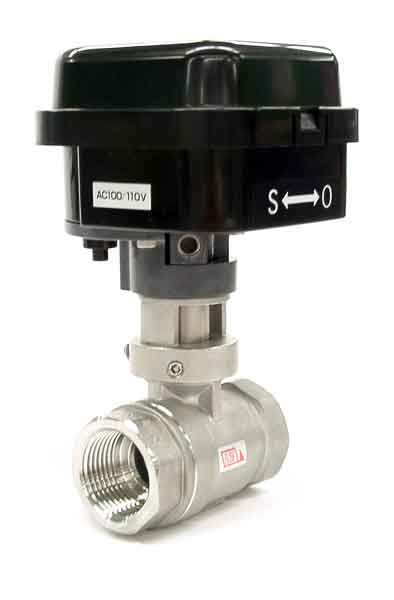

eg photo EG series control

Feature: Steam (170°C), for high temp.
Material: Stainless
MaPressure: 1 MPa
Temperature Rating: 0 to 150 (170)°C
Valve DN: 15 to 32A
sr photo SR series

Feature: For food / Corrosive fluid
Material: Stainless
Maximum Pressure: 1.4 (2) MPa
Temperature Rating: -20 to 80(150)°C
Valve DN: 15 to 25A
