| Electric Actuated Ball Valve |
| BF series |
|
|
Flanged-end valve for a wide range of pressure and temperature. It's possible to use for high temperature steam by choosing an appropriate seat material. | |||
| Connection | J10K/J20K flanged, Full bore | |||
| Material | Cast iron / Stainless | |||
| Valve DN | 15 to 200A | |||
| Maximum Pressure in MPa | 1.0 / 2.0 | |||
| Fluids | Water, Oil, Gas, Steam, Chemicals | |||
|
Production Data |
|
||
 Body |
 FCD400 |
 SCS13A |
 SCS14A(Only J10K) |
 SCS16A |
||||
 Ball |
SUS304 |
SUS304 |
SUS316(Only J10K) |
SUS316L |
||||
 Seat |
N-PTFE |
 R-PTFE |
 R-PTFE (with metal-ring) |
|||||
| Stem Seal | N-PTFE | |||||||
|
Valve Type |
Actuator |
*H |
L |
|||||
|
BF |
|
|
|
AE1 |
AD* |
J10K |
J20K |
|
|
Valve |
|
|||||||
|
15A |
0 |
120 |
300 |
300 |
216 |
279 |
108 |
140 |
|
20A |
0 |
120 |
300 |
300 |
220 |
283 |
117 |
152 |
|
25A |
0 |
120 |
300 |
300 |
|
294 |
127 |
165 |
|
2 |
360 |
. |
. |
. |
||||
|
40A |
0 |
360 |
300 |
300 |
248 |
320 |
165 |
190 |
|
2 |
. |
700 |
700 |
. |
320 |
|||
|
50A |
0 |
360 |
700 |
700 |
256 |
328 |
178 |
216 |
|
2 |
700 |
. |
. |
272 |
. |
|||
|
65A |
0 |
700 |
700 |
700 |
300 |
366 |
190 |
241 |
|
2 |
02K |
. |
02K |
393 |
388 |
|||
|
80A |
1 |
700 |
700 |
700 |
310 |
376 |
203 |
283 |
|
0 |
02K |
. |
02K |
403 |
398 |
|||
|
100A |
0 |
02K |
. |
02K |
441 |
436 |
229 |
305 |
|
125A |
1 |
02K |
. |
02K |
473 |
468 |
356 |
381 |
|
0 |
06K |
. |
06K |
485 |
473 |
|||
|
150A |
0 |
06K |
. |
06K |
503 |
493 |
394 |
403 |
|
200A |
1 |
06K |
. |
06K |
588 |
576 |
457 |
502 |
| NOTE: Sizing code 1 demands the special condition for fluid and pressure. Please consult us for your fluid condition. For R-PTFE seat, solvent or high viscous service, please consult for actuator selection. When using steam containing foreign matter, safeguard against abnormal pressure rise is needed. Please consult us. J20K: the selection would be just only 3TT*. |
Outside Drawing |
|
*H |
|

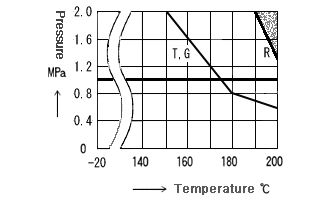

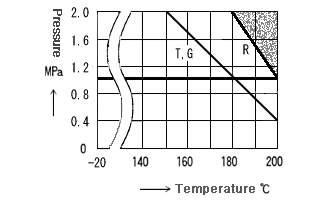

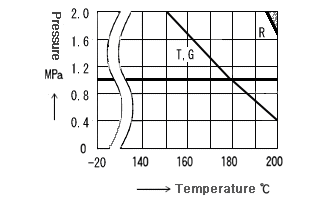

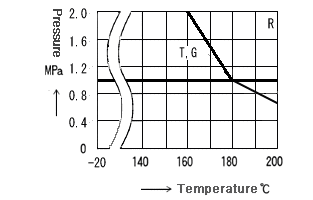

Pressure / Temperature Rating |
|
| Valve DN: 15A - 25A | |
 |
|
| Valve DN: 40A - 65A | |
 |
|
| Valve DN: 80A - 100A | |
 |
|
| Valve DN: 125A - 200A | |
 |
|
: |
|
|

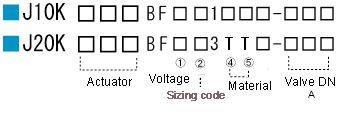

Product Code |
|
|
| Actuator | Power Supply |
High-Power | Note | |
| AC | Standard ON-OFF type | |||
| AE2 | HD2 | Built-in relay | ||
| AD1 | High speed operation | |||
| AD2 | Built-in relay | |||
| DC | DC power supply type | |||
| Option |  Voltage |
|||
| M1: Manual lever(for AH1/DM2) | 1: AC100/110V | |||
| X1: Heat isolation spacer for high temp. fluid | 2: 200/220V | |||
| Other: See the actuator specs | 0: DC24V | |||
|
|
|
