Electric Actuated Ball Valve T4/L4 series

Electric Actuated Ball Valve

T4/L4 series

		Flanged-end 3 way valve for a wide range of pressure and temperature. Both types come with 4 seats assuring tight shut off.

		Connection		J10K flanged, Full bore
		Material		Ductile iron/ Stainless
		Valve DN		25 to 125A
		Maximum Pressure in MPa		1.0
		Fluids		Water, Oil, Gas, Steam, Chemicals

Production Data

Body	FCD400					SCS13A		SCS14A
Ball	SCS13A					SCS13A		SCS14A
Seat				T: N-PTFE . G: R-PTFE (+FKM O-ring only 125A)
Stem Seal	N-PTFE

Valve Type		Actuator			H		L	Cv ( ): for straight port
T4/L4		AE1- AE2-	AD1- AD2-	HD1- HD2-	AE1 AE2	AD* HD*
Valve DN	Sizing code	AE1- AE2-	AD1- AD2-	HD1- HD2-	AE1 AE2	AD* HD*
25A	0	360	300	300	233	296	160	26 ( 45)
40A	0	360	700	700	256	328	180	65 (129)
50A	0	700	700	700	297	363	200	110 (219)
50A	2	02K	.	02K	390	385	200	110 (219)
65A	0	02K	.	02K	400	395	240	160 (300)
80A	0	02K	.	02K	424	419	260	260 (469)
100A	0	02K	.	02K	451	446	330	480 (820)
100A	2	06K	.	06K	450	444	330	480 (820)
125A	0	06K	.	06K	483	471	430	770 (1400)

NOTE: For R-PTFE seat, solvent or high viscous service, please consult for actuator selection. It may leak because of a piping pressure difference. Be sure to designate form a or b as flow path for T4 type(T port) *H When using high temp. fluid (over 150°C) , the option for thermal insulation is needed. X2:High power type (AE) +36mm S0:High power type(AE-02K, AD, HD, PDX, PHX, PHR) +5mm S3:High power type(AE-06K, HD-06K) +3mm

Flow Paths (top views of valve)			Outside Drawing
L4 type
T4 type	form a
	form b
		Position1 Position 2

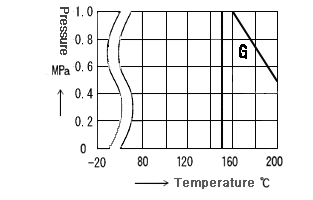

Pressure / Temperature Rating
Seat material
T: PTFE P: R-PTFE

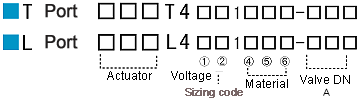

Product Code

T4/L4 CODE

Actuator	Power Supply	High-Power		Note		Voltage
	AC	AE1	HD1	Standard ON-OFF type		1: AC100/110V
		AE2	HD2	Built-in relay		2: 200/220V
		AD1		High speed operation		0: DC24V
		AD2		Built-in relay
	DC	AE2/AD2/HD2		DC power supply type		Option
						L*: Auxiliary signal limit switch
						Other: See the actuator specs
