Electric Actuated Butterfly Valve
FZ series

FZ PHOTO

 Low price and economical electric butterfly valve for air conditioning and equipment with light weight aluminum alloy diecast body.
Connection J10K/ J5K flanged, Wafer type
Material Aluminum alloy diecast
Valve DN 40 to 300A
Maximum Pressure in MPa 1.0
Fluids Water, Oil, Gas

Production Data

 STANDARD ORDER

4Body
L  ADC12

5Disc
U  U:SCS14  J:PPS

6Seat
E B  E:EPDM  B:NBR

 Stem Seal

NBR

Valve Type

Actuator
H

L

Cv

 Disk

FZ

AE1-
AE2-

AEX-

Valve
DN

 SCS14 PPS

40A

300

360

305

33

102

 32

50A

300

360

313

43

165

 100

65A

300

360

323

46

250

 140

80A

600

700

344

46

380

 270

100A

600

700

356

52

650

 390

125A

02K

02K

434

56

1100

 780

150A

02K

02K

449

56

1790

 1400

200A

02K

02K

489

60

3300

 3000
250A 06K 06K 587 68 4400
300A 06K 06K 629 78 6200


Inherent flow characteristic

Outside Drawing


FZ FLOW

FZ GAIKEI

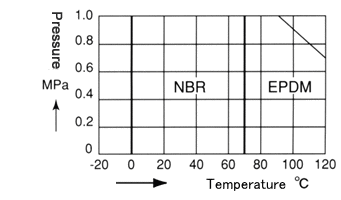

Pressure / Temperature Rating


FZ TEMP

NOTE:
EPDM seat cannot be used for oil.
The temperature for water must be up to 100°C. Steam cannot be used.

Product Code
FZ CORD

Actuator

Power Supply

High-power

Note

Control

1Voltage

AC

AE1

Standard ON-OFF type

AEX

1:AC100/110V

AE2

Built-in relay

2:200/220V

Option
Other: See the actuator specs
