High-pressure type Ball Valve     MH series

10A to 40A 3 piece type High pressure Threaded End Rc
Electric / Pneumatic / Manual Ball Valve

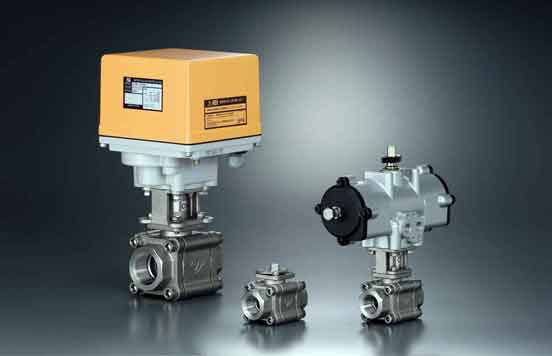

MH PHOTO

Long service life

Fluorine resin stem bearing.
Long service life is achieved.


3 piece structure

Maintenance quality improved by 3 piece structure.
It is possible to produce of various seal materials and connection types.


Valve specification
Valve type MH series
Design 2 way ball valve Full- bore
Connection Threaded End Rc
Valve DN 10A to 40A
Fluids Water, Oil , Corrosive fluid
Pressure (MAX) 14.0 MPa
Materials Body: SCS14A Ball: SCS14A+Hcr
Seat: POM/R-PTFE Stem seal: FKM

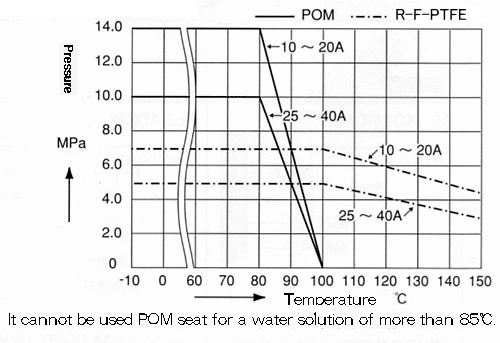

Pressure / Temperature rating
MH TEMP
