Stem seal structure for long service life
BR series Ball Valve
AE1BR PHOTO TADBR PHOTO MAXBR PHOTO
AE1 BR type TAD BR type MAX BR type

Features

  • Stem spring automatically modifies changes in pressure and temperature to make long service life possible. It is maintenance free and has an excellent durability.

  • Investment casting stainless body is light weight, high quality and low cost, and it pursues reliability and economization.

  • Special PTFE with advanced performance against creep to use for various fluids and wider temperature range.

Valve specifications
Valve type BR series

Design

2 way ball valve Full-bore
Connection J10K / J20K Flanged
Valve DN 15A to 150A

Fluids

 Water , Oil , Gas , Steam , Chemicals , Vacuum
Maximum Pressure 1.0MPa / 2.0MPa
Materials Body: SCS13A / SCS14A
Ball: SCS13A / SCS14A
Seat: F-PTFE / R-PTFE Stem seal: R-PTFE

Go to Electric Actuated Ball Valve BR series page for detail

Go to Pneumatic Actuated Ball Valve BR series page for detail
Go to Manual Valve BR series page for detail

Pressure / temperature Rating

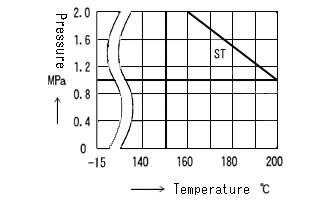

Valve DN 15A - 20A
BR TEMP

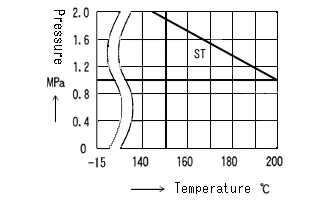

Valve DN 25A - 80A
BR TEMP2

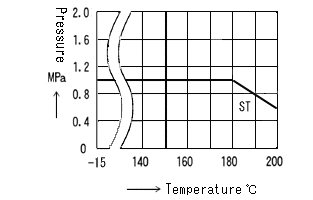

Valve DN 100A - 150A
BR TEMP3
