Compact Motorized Ball Valve |
EG series |
Compact and light weight valve for steam and high temperature fluid. This type has a long neck and accepts simple-structured actuator. Built for abnormal pressure rise. | ||||
Connection | Threaded End Rc, Standard bore |
|||
Material | Stainless | |||
Valve DN | 15 to 50A | |||
Maximum Pressure MPa | 1.0 | |||
Fluids | Steam (170 °C ), Oil, Gas |
Production Data |
|
||||||
Body |
SCS14A
|
||||||
Ball |
SUS316 |
||||||
Seat |
R-PTFE |
||||||
Stem Seal |
FKM (for steam) O Ring |
Valve Type |
Actuator |
H |
L |
Cv |
|||||
EG |
|
|
|
AM1 |
AH1 |
DM2 |
PAX |
||
Valve |
|||||||||
15A |
030 |
030 |
050 |
151 |
178 |
151 |
178 |
59 |
9 |
20A |
030 |
030 |
050 |
153 |
180 |
153 |
180 |
66 |
13 |
25A |
070 |
070 |
120 |
160 |
187 |
187 |
202 |
78 |
24 |
32A |
070 |
070 |
120 |
170 |
197 |
197 |
212 |
87 |
44 |
40A |
180 |
180 |
120 |
218 |
218 |
218 |
218 |
95 |
80 |
50A |
180 |
180 |
. |
224 |
224 |
224 |
. |
109 |
120 |
Inherent flow characteristic |
Outside Drawing |
|
|
||

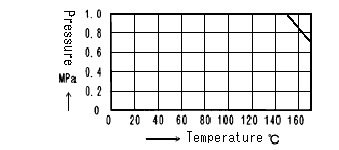

Pressure / Temperature Rating |
||
|
||
Product Code |
||
|
Actuator |
Power Supply |
|
Note |
Voltage | |
|
|
Standard ON-OFF type |
1: AC100/110V | ||
|
|
2: 200/220V | |||
|
|
0: DC24V | |||
|
|
||||
|
|
|
Option | ||
M1: Manual lever | |||||
(for AH1/DM2) |
|
|
