Compact Motorized Ball Valve
E series
E PHOTO Compact, light weight and economical valve for general use. This type accepts simple-structured actuator and designed for various types of fluid. It comes with highly anti-corrosive brass and SCS14A stainless.
Connection Threaded End Rc, Standard bore
Material Brass (Cr PLTD)/ Stainless
Valve DN 8 to 50A
Maximum Pressure MPa 1.0 (2.0)
Fluids Water, Oil, Gas


Production Data

 STANDARD ORDER

4Body
 Y Brass (C3771BE) Cr PLTD

 U SCS14A

5Ball

  Y Brass (C3604BD/C3771BE) Cr PLTD

 U SUS316

6Seat

 F F-PTFE

  T PTFE

 Stem Seal

  FKM

Valve Type

Actuator
H
L
Cv
E
AM1
AM2
AH1
DM2
PAX
AM1
AM2
AH1
DM2
PAX

Valve
DN
2
Sizing
Code
 Brass SUS
8A
0
030
030
050
118
145
118
145
46

 5
10A
0
030
030
050
118
145
118
145
46

 5
15A
0
030
030
050
121
148
121
148
59
12
 12
20A
0
030
030
050
123
150
123
150
66
16
 16
25A
0
030
030
050
129
156
129
156
78
28
 28
32A
0
070
070
120
140
167
167
182
87
47
 47
40A
0
070
070
120
146
173
173
188
95
83
 83
2
180
180
 .
188
188
188

.
50A
0
180
180
120
194
194
194
194
109
115
 123

Inherent flow characteristic
Outside Drawing
E FLOW
E GAIKEI
Pressure / Temperature Rating
E TEMP
NOTE: When using high temp. fluid(over 60°C) or fluid containing sludge, select the sizing code 2.
*H In case of with Optional X0 (Insulating long neck) : +30mm
It is can be used at valve DN 8/10A for the material selection UUT.

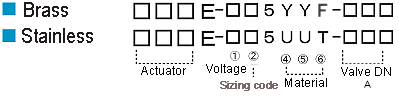

Product Code
E CODE

Actuator

Power Supply
Compact

Note
AC
AM1

Standard ON-OFF type
AM2
Built-in relay
AH1
High speed operation
PAX
Control
DC
DM2
DC power supply
1Voltage   Option
 1: AC100/110V  M*: Manual lever
 2: 200/220V       (M1: AH1/DM2)
 0: DC24V  X0: Insulating long neck
