Electric Actuated Ball Valve
PA series
PA PHOTO Compact and light weight plastic valve. This type accepts simple-structured actuator, and designed for various types of fluid. Various control selections and connections are available.
Connection J10K flanged
Threaded End Rc,
Socket, Full bore
Material PVC/ C-PVC/ PVDF/ PP
Valve DN 15 to 100A
Maximum Pressure in MPa
 1.0
Fluids Water, Chemicals, Sea water

Production Data

 STANDARD ORDER

4Body

 P PVC

 H C-PVC

 R PVDF

 G PP

5Ball

 P PVC

 H C-PVC

 R PVDF

 Q PP

Seat

 PTFE

6Stem Seal

 E V E: EPDM . V: FKM

Valve
Type		 Actuator H L Cv
V
a
l
v
e

DN		 2
S
i
z
i
n
g

code		 CM1
CM2		 AM1
AM2
AH1		 AE1
AE2		 CM1
CM2		 AM1
AM2		 AH1 AE1
AE2		 *FL *TA *TS
PVC/C-PVC
PP
PVDF		 PVC/C-PVC
PP
PVDF		 PVC/C-PVC
PP

15A 0 030 030 120 110 143 170 195 143
143
143		 102
100
100		 109
108
 		 14
20A 0 070 070 120 137 149 176 202 172
172
172		 120
119
119		 128
126
 		 29
25A 0 070 070 120 144 156 183 209 187
187
187		 131
130
130		 145
141
 		 47
32A 0 070 070 120 161 173 200 218 190
190
190		 150
146
146		 162

 		 72
40A 0 . 180 120 . 235 235 226 212
212
212		 163
160
160		 189
171
 		 155
50A 0 . . 300 . . . 238 234
234
234		 197
194
194		 220
192
 		 190
65A 0 . . 300 . . . 258 261
257
256		 215
213
212		 273
219
 		 365
2 . . 600 . . . 274
80A 0 . . 600 . . . 283 306
305
302		 265
264
261		 316
257
 		 410
100A 0 . . 600 . . . 324 374
374
369		 362
362
357		 419
341
 		 680
2 . . 02K . . . 373

NOTE:
*FL: Flanged *TA:Threaded End Rc *TS: Socket
For solvent or high viscous service, please consult for actuator selection.




Pressure / Temperature Rating

Outside Drawing

Material:

P: PVC, H: C-PVC Q: PP, R: PVDF
  PA GAIKEI

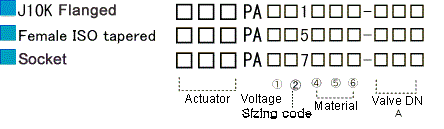

Product Code

PA CODE

Actuator Power Supply Compact High-power Note
AC CM1
AM1		 AE1 Standard ON-OFF type
CM2
AM2		 AE2 Built-in relay
AH1   High speed operation

Option 1Voltage

L*: Auxiliary signal limit switch

 1: AC100/110V
Other: See the actuator specs 2: 200/220V
