Electric Actuated Ball Valve PL series

Electric Actuated Ball Valve

PL series

		Compact and light weight plastic valve. This type accepts simple-structured actuator, and designed for various types of fluid. Various control selections and connections are available.

		Connection		J10K flanged Threaded End Rc, Socket, Full bore
		Material		PVC/ C-PVC/ PVDF/ PP
		Valve DN		15 to 100A
		Maximum Pressure in MPa		1.0
		Fluids		Water, Chemicals, Sea water

Production Data

Body

PVC

C-PVC

PVDF

PP

Ball

PVC

C-PVC

PVDF

PP

Seat

PTFE

Stem Seal

E: EPDM . V: FKM

Valve Type		Actuator			H				L				Cv
V a l v e DN	S i z i n g code	CM1 CM2	AM1 AM2 AH1	AE1 AE2	CM1 CM2	AM1 AM2	AH1	AE1 AE2	*FL	*TA	*TS
V a l v e DN	S i z i n g code	CM1 CM2	AM1 AM2 AH1	AE1 AE2	CM1 CM2	AM1 AM2	AH1	AE1 AE2	*FL	*TA	PVC C-PVC	PP
15A	0	030	030	120	110	143	170	195	143	102	108	108	6.3
20A	0	070	070	120	137	149	176	202	172	120	128	126	8.5
25A	0	070	070	120	144	156	183	209	187	131	145	141	20
32A	0	.	180	120	.	235	235	226	212	163	174	.	27
40A	0	.	180	120	.	235	235	226	212	163	189	171	36
50A	0	.	.	300	.	.	.	238	234	197	220	192	45
65A	0	.	.	600	.	.	.	283	304	264	316	264	84
80A	0	.	.	600	.	.	.	283	304	264	316	258	99
100A	0	.	.	600	.	.	.	324	372	360	418	340	200
100A	2	.	.	02K	.	.	.	373	372	360	418	340	200

NOTE:
*FL: Flanged *TA:Threaded End Rc *TS: Socket
For solvent or high viscous service, please consult for actuator selection.

Flow Paths				Outside Drawing
Position1Position 2
dividing: Flows from C port to A, B port.
mixing: Flows from A, B port to C port.

Pressure / Temperature Rating

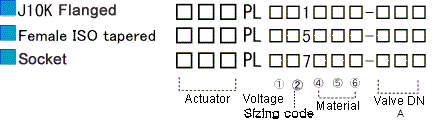

Product Code

PL CODE

Actuator	Power Supply	Compact	High-power	Note
	AC	CM1 AM1	AE1	Standard ON-OFF type
		CM2 AM2	AE2	Built-in relay
		AH1		High speed operation

Option				Voltage
L*: Auxiliary signal limit switch				1: AC100/110V
Other: See the actuator specs				2: 200/220V
