Electric Actuated Ball Valve VR series

Electric Actuated Ball Valve

VR series

		Compact, light weight and high performance control valve. V-ported segment provides maximum versatility in control, and various types of fluid are acceptable. It has an equal percentage inherent flow characteristic, and stem seal structure provides excellent durability.

		Connection		J10K flanged V-ported
		Material		Stainless
		Valve DN		R15 to 80A
		Maximum Pressure in MPa		1.0
		Fluids		Water, Oil, Gas, Steam, Chemicals

Production Data
Body	SCS14A
Ball	SCS14A
Seat	R-PTFE								R-F-PTFE
Stem Seal	R-PTFE+FKM O-ring (ST: for steam FMK O-Ring)

Valve Type		Actuator			*H				L	Cv
VR	Sizing code	PAX-	AEX-	PDX- PHX-	PAX	AEX	PDX PHX
Valve DN ()
R15A (R015)	0	050	120	300	179	207	274		108	1.3
	2	120	.	.	194	.	.
15A (-015)	0	050	120	300	179	208	274		108	4
	2	120	.		194	.
20A (-020)	0	120	120	300	198	210	277		117	7.5
25A (-025)	0	120	120	300	210	217	284		127	12
	2		360			217
32A (-32)	0	.	360	300	.	223	290		140	20
40A (-040)	0	.	360	300	.	232	299		165	31
	2		700	700		248	299
50A (-050)	0	.	360	700	.	240	307		178	48
	2	.	700	.	.	256	.
65A (-065)	0	.	700	700	.	287	330		190	85
80A (-080)	0	.	700		.	299			203	123
	2	.	02K	02K	.	357	364

Inherent flow characteristic	Outside Drawing

Pressure / Temperature Rating

VR TEMP

NOTE:	For solvent or high viscous service, please consult for actuator selection. The option ST seat is needed for steam. Heat isolation spacer is needed for high temp. fluid over150°C X1: Compact type PAX +30mm X6: High-power type (AE15 to 50A) +36mm X2: High-power type (AE65 to 80A) +36mm S0: High-power type AE-02K, PDX, PHX +5mm

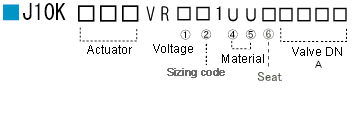

Product Code

Actuator	Power Supply	Control
		Compact	High-power type		High frequency
	AC	PAX	AEX		PHX
			PDX
	DC		PDX		PHX

Option	Voltage
X1: Thermal insulating extension (Compact type)	1: AC100/110V
EI: 4 - 20mA indication signal board (High-power type)	2: 200/220V
EA: Alarm output board (High-power type)	0: DC24V
Other: See the actuator specs
