Electric Actuated Ball Valve
L2 series
L2 PHOTO Flanged-end 3 way valve for a wide range of pressure and temperature. It's designed for high temperature steam by choosing an appropriate seat material.
Connection J10K flanged, Full bore
Material Ductile iron/ Stainless
Valve DN 20 to 100A
Maximum Pressure
MPa		 1.0
Fluids Water, Oil, Gas, Steam, Chemicals

Production Data

 STANDARD ORDER

4Body

 D FCD400

 T SCS13A

 U SCS14A

5Ball

 T SCS13A

 T SCS13A

 U SCS14A

6Seat

 T G

T: N-PTFE

G: R-PTFE (Control for G seat only)

 Stem Seal

 N-PTFE

Valve Type

Actuator

*H

L

Cv

L2

AE1
AE2
AEX

AD1
AD2

HD1
HD2

 PDX
PHX
PHR

AE1
AE2
AEX

AD*
HD*
PDX
PHX
PHR

ON/OFF

Effective
Cv value

Valve
DN

2
Sizing
code

20A

0

120

300

 300

300

224

287

287

150

24

10

25A

0

120

300

 300

300

231

294

294

170

40

20

2

360

.

 .

700

231

.

294

40A

0

360

300

 300

300

246

318

318

200

100

60

2

.

700

700

700

.

318

318

50A

0

360

700

700

700

255

327

327

230

170

110

2

700

.

.

.

271

.

.

65A

0

700
700

700
700

302

368

368

260

240

150

2

02K



02K

02K

395

390

390

80A

0

02K

.

02K

02K

405

400

400

280

380

240

100A

0

02K

.

02K

02K

441

436

436

340

680

440

NOTE:
Sizing code 1 demands the special condition for fluid and pressure. Please consult us for your fluid condition.
For R-PTFE seat, solvent or high viscous service, please consult for actuator selection.
It may leak because of a piping pressure difference.
*H:
When using high temp. fluid (over 150°C) , the option for thermal insulation is needed.
X2:High power type (AE) +36mm
S0:High power type (AE-02K,AD,HD,PDX,PHX,PHR) +5mm
S3:High power type (AE-06K,HD-06K,PDX,PHX,PHR) +3mm

Flow Paths (top views of valve)

Outside Drawing

FORM
Position1ALOWPosition 2

L2 GAIKEI

dividing: Flows from C port to A, B port.

mixing: Flows from A, B port to C port.

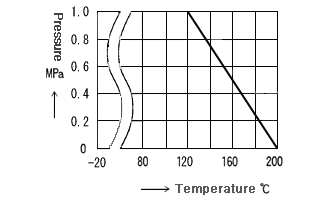

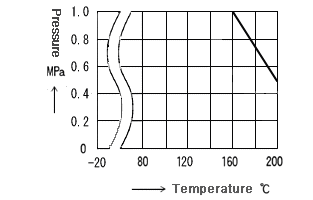

Pressure / Temperature Rating


ON/OFF

 Control
L2 TEMPL2 TEMP2
Inherent flow characteristic
L2 FLOW


Product Code

L2 CODE

Actuator

Power Supply

High-Power

Note

Control

1Voltage

AC

AE1

HD1

Standard ON-OFF type

AEX

1: AC100/110V

AE2

HD2

Built-in relay
PDX

2: 200/220V

AD1

High speed operation

PHX

0: DC24V

AD2

Built-in relay

DC

AE2/AD2/HD2

DC power supply type

Option

L*: Auxiliary signal limit switch

Other: See the actuator specs
