Electric Actuated Butterfly Valve
DZ series
DZ PHOTO High performance valve with an excellent control ability. This type accepts wide range of fluid temperature.
Connection J5K/ J10K flanged, Wafer type
Material Stainless
Valve DN 50 to 300A
Maximum Pressure in MPa 1.0
Fluids Water, Oil, Gas, Steam
Sea water

Production Data

 STANDARD ORDER

4Body

 T SCS13A

 U SCS14A

 Disc

 T SCS13A

 U SCS14A

6Seat

 G M G: R-PTFE   M: SUS316

5Stem Seal

  T G T:PTFE   G: Graphite

Valve Type

Actuator

H

L

Cv

DZ

AE1-
AE2-

AEX-
AD*-
 HD*- PDX-
PHX-
PHR-

AE1
AE2
AEX
AD*
 HD*
PDX
PHX
PHR

Valve
DN

2
Sizing
code

50A

0

300

360

300

 300

300

315
374
374

43

60

65A

0

300

360

300

 300

300

325
384
384

46

100

80A

0

300

360

300

 300

300

335
394
 394

46

190

2

 600

700

700

 700

700

353

100A

0

600

700

700

 700

700

363
404
404

52

380

125A

0

600

700

700

 700

700

400
443
443

56

730

2

02K

02K
.
 02K

02K

458
.
465

150A

0

02K

02K
.
 02K

02K

473
.
480

56

1250

200A

0

02K

02K
.
 02K

02K

502
.
509

60

2400

250A

0

06K

06K

 . 06K

06K

609

.
597

68

4000

300A

0

06K

06K

 . 06K

06K

629

.
617

78

5800

NOTE:
Please consult us for your fluid condition.
Thermal insulation is needed for low temp. fluid below -30°C or high temp.more than 250°C. The stem seal should be Graphite. Please consult us.
Seat material G is just only 50A and 65A.


Inherent flow characteristic

Outside Drawing

DZ FLOW

DZ GAIKEI

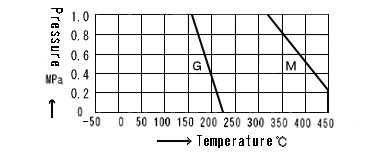

Pressure / Temperature Rating

Seat material G: R-PTFE . M: Metal

DZ TEMP
Product Code
DZ CORD

Actuator

Power Supply

High-power

Note

Control

1Voltage

AC

AE1

 AD1

Standard ON-OFF type

AEX

1: AC100/110V

AE2

 AD2

Built-in relay
PDX

2: 200/220V

HD1

High speed operation

PHX

0: DC24V

HD2

Built-in relay

PHR

DC

AD2/HD2

DC power supply type

Option
L*: Auxiliary signal limit switch
Other: See the actuator specs
