Electric Actuated Ball Valve GS series

Electric Actuated Ball Valve

GS series

		Range ability 200:1 was realized to use U cut ball. It designed for long service life by trunnion structure and seat spring.

		Connection		J10K / 20K flanged, Wafer type
		Material		Stainless
		Valve DN		15 to 80A
		Maximum Pressure in MPa		2.0
		Fluids		Water, Air, Oil, Gas, Steam,Chemicals, Slurry

Production Data
Body		SCS14A
Ball		SCS14A
Seat										G: R-PTFE K:PEEK I:API C: R-PEEK M:SUS316+Stellite
Stem Seal		R-PTFE

Valve Type		Actuator						H					L	Cv ( ):V-port
GS		AM1 AM2 AH1 DM2	PAX	AE1- AE2- AEX-	AD1 AD2	HD1 HD2	PDX PHX	AM1 AM2	AH1 DM2	PAX	AE1 AE2 AEX	AD* HD* PDX PHX
Valve DN (A) ()	Sizing code	AM1 AM2 AH1 DM2	PAX	AE1- AE2- AEX-	AD1 AD2	HD1 HD2	PDX PHX	AM1 AM2	AH1 DM2	PAX	AE1 AE2 AEX	AD* HD* PDX PHX
15 (-015)	0	070	050	120	300	300	300	185	212	212	230	300	40	20
15 (-015)	2	.	120							227		.	40	20
20 (-020)	0	070	120	120	300	300	300	187	214	229	232	302	50	36
20 (-020)	2	180	.	360				229	229		232	.	50	36
25 (-025)	0	180	120	120	300	300	300	241	241	241	241	311	60	50
25 (-025)	2	.		360	.	.	.				241	.	60	50
32 (-032)	0	180		120	300	300	300	244	244		245	315	70	90
32 (-032)	2			360			700				245	315	70	90
40 (-040)	0			360	300	300	300				268	338	80	120
40 (-040)	2			700	700	700	700				284	338	80	120
50 (-050)	0			360	700	700	700				276	346	95	220
50 (-050)	2			700							292		95	220
65 (-65)	0			700	700	700	700				326	370	110	380
65 (-65)	2			02K	02K	02K	02K				397	392	110	380
80 (-080)	0			700	700	700	700				333	377	125	750
80 (-080)	2			02K		02K	02K				404	399	125	750
V15 (V015)	0		050	120			300			212	230	300	40	4
V15 (V015)	2	.	120							227		.	40	4
V20 (V020)	0		120	120			300			229	232	302	50	8
V20 (V020)	2		.	360							232	.	50	8
V25 (V025)	0		120	120			300			241	241	311	60	9
V25 (V025)	2	.		360	.	.	.				241	.	60	9
V32 (V032)	0			120			300				245	315	70	22
V32 (V032)	2			360			700				245	315	70	22
R40 (R040)	0	180		120	300	300	300	244	244		245	315	80	95
R40 (R040)	2			360							245		80	95
R50 (R050)	0			360	300	300	300				276	346	95	135
R50 (R050)	2			700	700	700	700				292	346	95	135
R65 (R065)	0			360	700	700	700				284	354	110	195
R65 (R065)	2			700							300		110	195
R80 (R080)	0			700	700	700	700				326	370	125	410
R80 (R080)	2			02K		02K	02K				422	417	125	410
R100 (R100)	0			700	700	700	700				351	395	145	430
R100 (R100)	2			02K		02K	02K				422	417	145	430
R125 (R125)	0			02K		02K	02K				451	446	176	900
R125 (R125)	2			06K		06K	06K				499	487	176	900
R150 (R150)	1			02K		02K	02K				469	464	215	1360
R150 (R150)	0			06K		06K	06K				517	505	215	1360

Inherent flow characteristic

Outside Drawing

GS GAIKEI

Seat leakage volume

Seat material	Standard leakage	Remarks
G: R-PTFE	Leakage 0	.
I: API	Leakage 0	.
K: PEEK	Leakage 0	.
M: SUS316+Stellite	Less than 0.01% of Cv value	ANSI B16-104 class IV

NOTE)	Seat material M can also be manufactured at ANSI B16-104 class V
NOTE)	Sizing code 1 demands the special condition for fluid and pressure. Please consult us for your fluid condition.
*H	When using high temp. fluid (over 170°C) , the option for thermal insulation is needed. X1:Compact type (AM,AH,DM,PAX) +30mm X2:High power type (AE120 - 700) +36mm S0:High power type (AE-02K,AD,HD,PDX,PHX,PHR) +5mm S3:High power type (AE-06K,HD-06K) +3mm

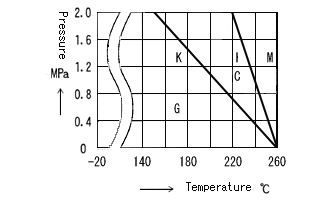

Pressure / Temperature Rating

GS TEMP

Product Code

GS CODE

Actuator	Power Supply	Compact		High-Power	Note	Control	Voltage
	AC	AM1		AE1 HD1	Standard ON-OFF type	PAX	1: AC100/110V
		AM2		AE2 HD2	Built-in relay	AEX PDX	2: 200/220V
		AH1		AD1	High speed operation	PHX	3: AC24V(PDX/PHX)
	DC	DM2		AE2 AD2	DC power supply type	PDX PHX	0: DC24V
Option L*: Auxiliary signal limit switch (for high-power) Other: See the actuator specs
